Installing your router



main-phone

1. Find your master socket or ONT

Find your master phone socket. For the best speed and stability connect your router to your master phone socket.

If it has one slot, like in the image, you'll need the broadband filter (pictured below) for the next step.

pre-filtered

Note: The phone socket might have two slots


If there are two slots, you'll only need the grey cable for the next step.
S1-Lights-on-modem

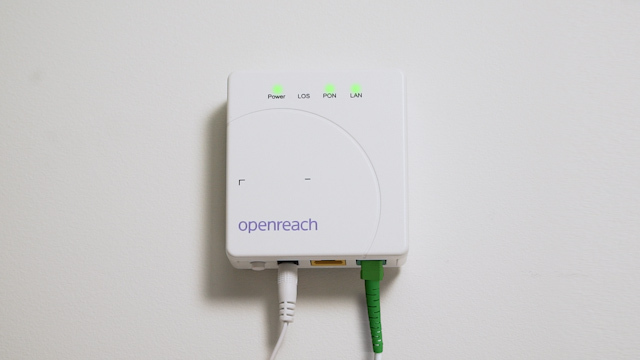

ONT (Openreach Modem)

You may also have an ONT. This is a box (usually white) with LEDs and a few ports.



2. Unplug everything from the socket or ONT

This includes phone cables and any existing broadband equipment or filter.

unplug-splitters
1

3. Master Socket: Plug in your BT router

  • If the socket has two slots: Plug the grey cable into the socket directly.
  • If the socket has one slot: Plug the filter into the slot and then plug the grey cable into the slot labelled 'modem', 'router' or similar.

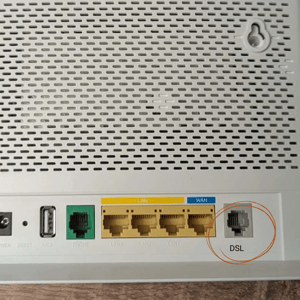

  • Plug the other end of the grey cable into the port labelled "DSL" on the back of your router.

If you removed your phone cable, plug it back into the port marked 'Phone'.

3. ONT: Plug in your BT router

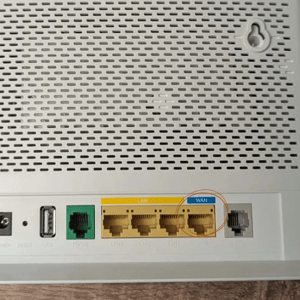

Plug the yellow cable into the WAN port on your router, and the other end into your ONT socket.

DSL (1)
2

4. Connect power supply

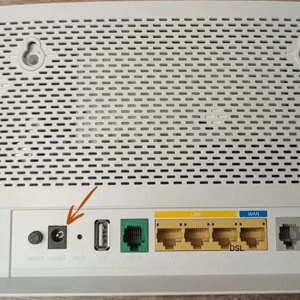

Plug the power cable into the power port in the back of your router.

Plug the other end directly into the mains, and press the power button to the left of the power port to switch on your router.

5. Configuration

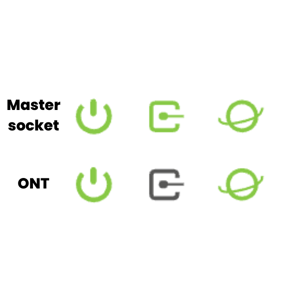

It'll take a few minutes for your router to configure itself after you switch it on. When configuration has finished, the green LEDs will stop flickering.

  • If you have a master socket, all three LEDs will be on.
  • If you have an ONT, the left and right LEDs will be on.



DSL (2)

6. Connect your device

Wi-Fi:

Select your new network from the list of available options and enter the password. The label on the underside of your router has the network name and password.

Wired connection:

Use an ethernet cable (the yellow cable in your router box) to connect your device to the router

7. Connect your laptop or desktop

Wifi
Find your connection

Windows 10, 7 and Vista: Look for a network icon in the bottom right of your screen

Windows 8: Your network can be found in the settings area, the cog icon on the home screen ⚙️

Mac OS: The Wi-Fi icon at the top of your screen shows your available networks. You can also find them under: System Preferences > Network > Wi-Fi.

Broadband2
Which is my WiFi?

Your Wi-Fi network name will usually begin with "TP-"

You can find your network name on the label beneath your router.

8. Change your network settings


  • Type  http://tplinkmodem.net or http://192.168.1.1 into your web browser.

  • The default password is on the label on the underside of your router.

  • From here you can update your router name and password.

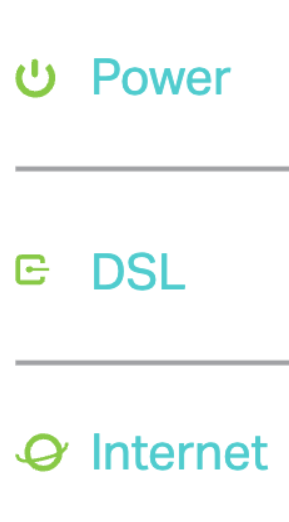

What your router lights mean:

Screenshot 2025-07-08 at 11.53.28

Power LED:

  • On: Power is on

  • Flashing: The system is starting up OR firmware is being upgraded:

  • Off: Power is off

DSL LED:

  • On: DSL synchronisation is complete.

  • Flashing: DSL synchronisation is in progress.

  • Off: DSL synchronisation failed.

Internet LED:

  • On: Internet connection is available.

  • Off: No internet connection.

FAQs

Find answers to more questions at bit.ly/OUBHelp

When will my router arrive?

Your router should be with you within two weeks. You'll get DPD delivery details via text, and your router will arrive in a DPD bag.

Will I need an engineer appointment?

You'll get a date and time via email if you need an engineer appointment. You may not need one!

You can see appointment info in in the broadband tracker on your dashboard. Note: Your engineer might need to come out more than once.

Your engineer appointment could take between 30 minutes to 2 hours, but they may not need to come into your property. Someone will still need to be home during the appointment window, just in case.

Where is my wall socket?

Wall sockets can be tricky 'cause there's is no set location!

Usually your wall socket is:

  • In a communal area like the living room
  • In the front bedroom if you're in a shared house or flat

If that doesn't help, look for a brown box on the outside of your house or flat.

  • This is usually on the front of the property/nearest street entrance and should feed into your house.
  • On the inside of this wall there should be a wall socket like the ones pictured above.
  • Congrats! You just found your broadband socket.

What is my broadband speed?

DOWNLOAD: It’s the speed that matters, how fast your internet connection is able to retrieve data from the internet. Browsing, streaming and everything in between is affected by this and it’s the speed most providers focus on.

UPLOAD: Upload speed refers to the speed that your internet connection can allow data to be sent from your devices to the internet. Usually relevant for uploading content like photos, videos or your webcam during a video call.

Want to test your speed? 👉 https://www.speedtest.net/

What if I can't access my router management page?

  • If your device is set to a static IP address, change the IP settings to get an IP address automatically.
  • Make sure http://tplinkmodem.net or http://192.168.1.1 is correctly typed in the web browser.
  • Try a different web browser.
  • Reboot your modem router and try again.
  • Disable then enable the network adapter in use.

My DSL LED is off or hasn't stopped flashing

  • Check your cables are plugged in correctly, including the phone lines and power adapter.
  • Restore your modem router to its factory default settings by holding the RESET button on the back panel for 10 seconds.
    • Log in to your router management page and go to Advanced > System tools > Backup and restore.
  • Remove the DSL splitter, directly connect the modem router to the phone port and follow the setup steps again.
  • Contact your ISP (internet service provider) to check the status of your DSL line.
